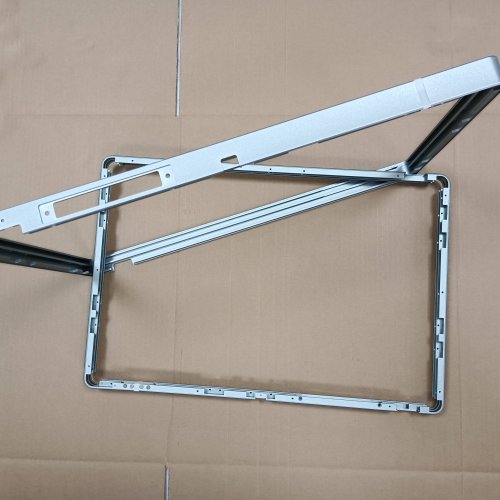

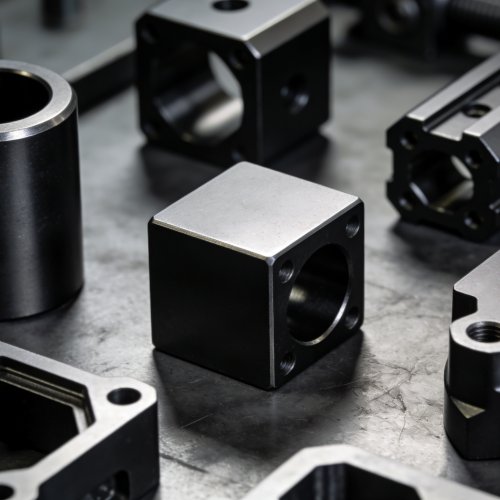

CNC Machining for Aluminum Frames and Structural Profiles

CNC machining is essential for transforming standard aluminum extrusions and profiles into precision-engineered frames and structural components. From machine guards and workstations to equipment enclosures and conveyor supports, aluminum frames offer lightweight, corrosion-resistant, and cost-effective structural solutions. Precision CNC machining adds the holes, slots, threaded features, and surface finishes required for reliable assembly and long service life.

Common Applications of CNC-Machined Aluminum Frames

Aluminum frames are widely used across many industries due to their versatility and structural efficiency:

◆ Machine Guards and Safety Fencing – protective enclosures around industrial equipment, typically built with extruded aluminum profiles and polycarbonate panels

◆ Workstations and Assembly Tables – modular work platforms with T-slot profiles for flexible fixture mounting and accessories

◆ Equipment Enclosures and Cabinets – housings for electronic equipment, control panels, and instrumentation

◆ Conveyor Supports and Frames – structural bases for material handling systems, with mounting holes for rollers and drive components

◆ Linear Guide and Motion System Frames – precision frames for robotics, pick-and-place systems, and automated assembly lines

◆ Display and Exhibition Structures – lightweight frames for trade shows and product displays

Types of Aluminum Profiles Used in Frame Construction

◆ Standard Extrusion Profiles – T-slot, V-slot, and rectangular hollow sections available in standard sizes and shapes

◆ Custom Extrusion Profiles – designed to meet specific application requirements, reducing component count and simplifying assembly

◆ Solid Bar and Plate – machined from aluminum plate or bar stock for solid structural components that cannot be formed by extrusion

◆ Bent and Formed Sections – curved or angled profiles created through bending operations after extrusion

Common Aluminum Alloys for Frame Machining

◆ 6061 – the most versatile aluminum alloy, offering good strength, excellent corrosion resistance, and superior machinability

◆ 6063 – specifically designed for extrusion, with excellent surface finish and good corrosion resistance, ideal for visible frames and enclosures

◆ 6005 – similar to 6063 but with slightly higher strength, suitable for load-bearing frame applications

◆ 6082 – higher strength than 6061, often used for heavy-duty frames and structural applications

Key CNC Machining Operations for Aluminum Frames

Modern CNC machining centers perform a range of operations to prepare aluminum extrusions for final assembly:

◆ Cutting to Length – precision sawing or CNC routing cuts extrusions to accurate final dimensions, typically within plus or minus 0.5mm for standard cuts

◆ Milling and Profiling – creates slots, notches, recesses, and complex cutouts; used for miter cuts and angle joints where two profiles meet

◆ Drilling and Tapping – produces through-holes, blind holes, and threaded holes for bolts, set screws, and accessory attachments

◆ Counterboring and Countersinking – creates recesses for bolt heads allowing for flush-mounted hardware

◆ T-Slot Milling – creates T-slot channels for bolt connections and panel mounting

◆ End Milling – squares the ends of profiles after cutting, ensuring perpendicularity for clean, accurate joints

◆ Radius and Chamfer Milling – breaks sharp edges for safety and improved appearance

Critical Features Machined on Aluminum Frames

◆ Connector and T-Nut Holes – precisely located holes for joining profiles using T-nuts, connector plates, and bracket fasteners

◆ Panel Grooves – slots for mounting polycarbonate, acrylic, or wire mesh panels into frame structures

◆ Feet and Leveling Mount Holes – threaded holes for adjustable leveling feet and anti-vibration mounts

◆ Accessory Mounting Holes – holes for lighting, sensors, camera mounts, and other accessories

◆ Alignment Features – dowel pin holes and locating slots for precise assembly and repositioning

Surface Finishing Options for Machined Aluminum Frames

After machining, aluminum frames can be finished to improve appearance, corrosion resistance, and durability:

◆ Anodizing – the most common finish for aluminum frames. Provides excellent corrosion resistance and allows for custom colors. Clear, black, and color anodizing are available.

◆ Powder Coating – adds a durable, scratch-resistant finish in a wide range of RAL colors

◆ Brush Finish – a decorative satin finish that hides scratches and wear

◆ Chromate Conversion Coating – provides corrosion protection while maintaining electrical conductivity

◆ Polishing – high-gloss finish for decorative applications

Design Considerations for Machined Aluminum Frames

◆ Tolerance Planning – allow adequate machining stock on critical features; standard extrusions have mill tolerances that may not be suitable for precision joints

◆ Cut Sequence – plan operations to minimize setup changes and ensure dimensional accuracy

◆ Wall Thickness – avoid machining features that weaken profile walls; maintain minimum wall thickness for structural integrity

◆ Chip Evacuation – aluminum generates long, stringy chips; proper tool paths and cooling are essential

◆ Burr Control – aluminum is soft and prone to burring; plan for deburring operations to ensure clean assemblies and safe handling

Typical Machining Tolerances for Aluminum Frames

◆ Cut Length – plus or minus 0.3mm to 0.5mm for standard structural cuts

◆ Hole Position – plus or minus 0.15mm for connector and attachment holes

◆ Thread Depth and Position – plus or minus 0.2mm for tapped holes

◆ Slot Width and Position – plus or minus 0.1mm for T-slot and panel grooves

◆ Miter and Angle Cuts – plus or minus 0.5 degrees for frame assembly accuracy

Quality Assurance in Aluminum Frame Machining

◆ Dimensional Verification – all critical dimensions inspected with calipers, micrometers, or CMM

◆ Thread and Tapping Verification – all tapped holes verified for correct depth and thread fit with go/no-go gauges

◆ Burr Inspection – visual inspection for sharp edges and burrs to ensure safe handling and proper fit

◆ Surface Finish Inspection – verification of surface quality on visible and functional surfaces

◆ Assembly Check – assembly testing ensures all components fit together correctly
